DESCRIPTION

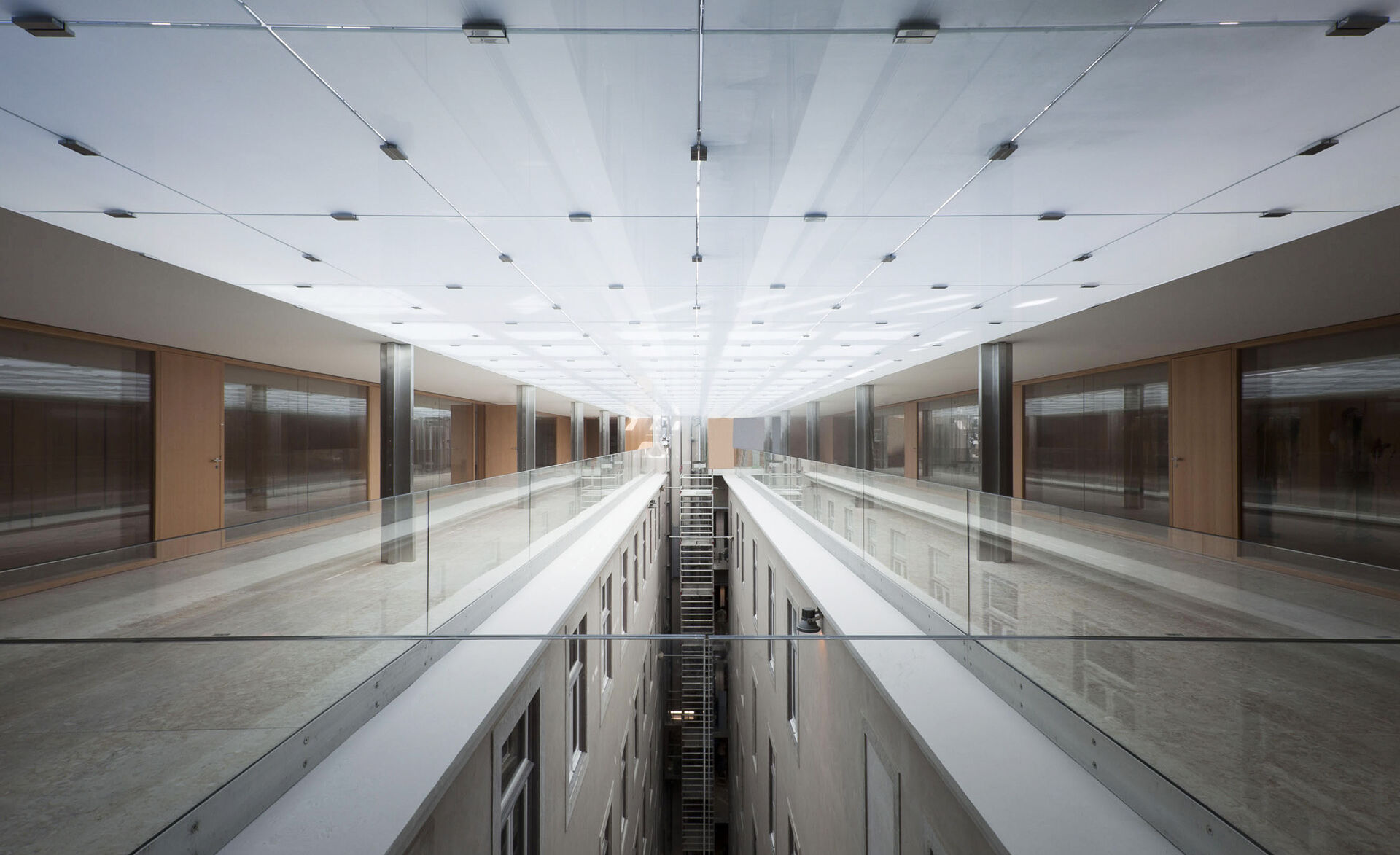

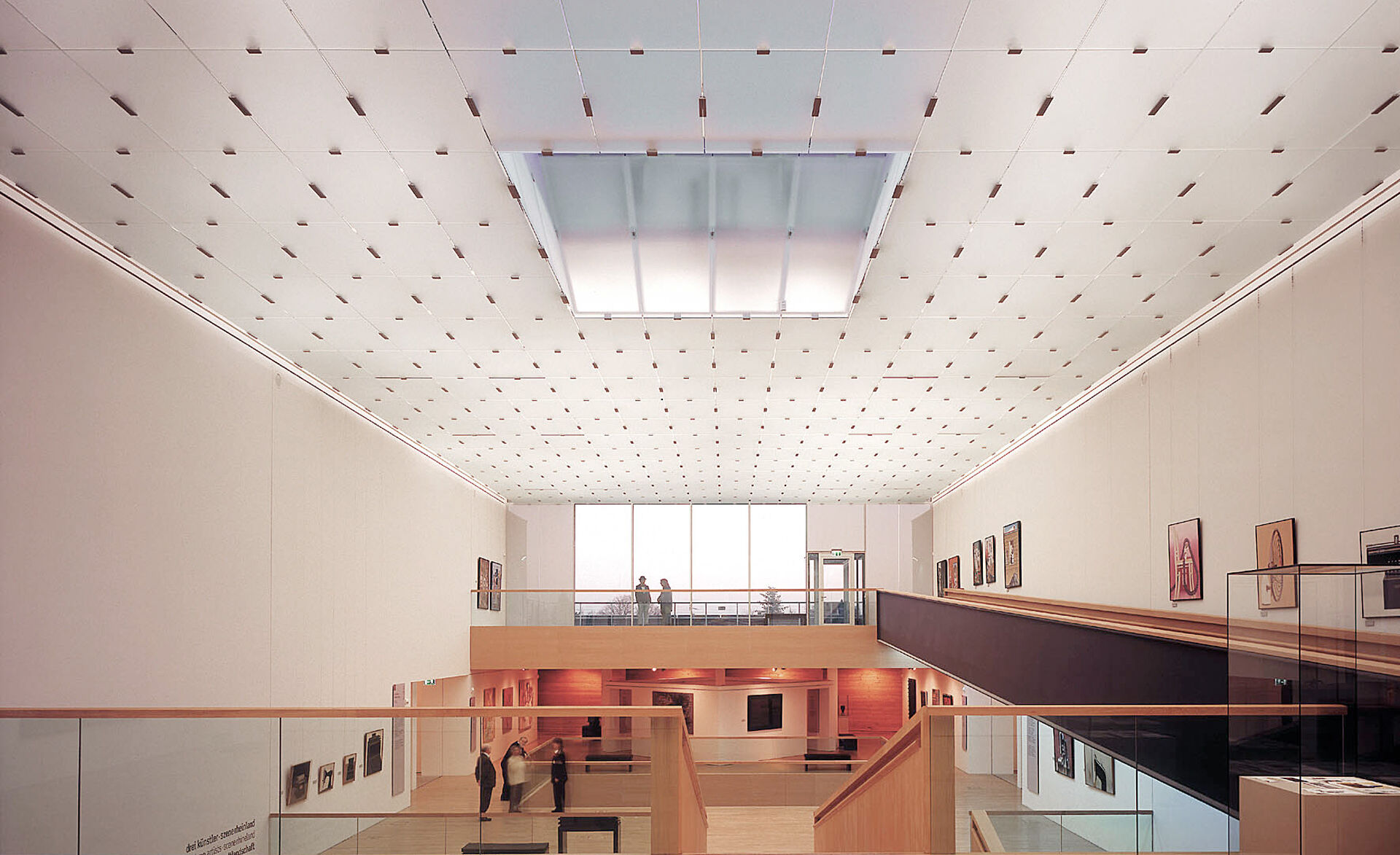

GM KUB is a rectangular, rail-mounted fastening system that protrudes on the view side and can be used to suspend luminous glass ceilings. The suspension of the glass fields is based on a hook-in glass fitting system that can be slid to a limited extent (patent: Glas Marte): With the GM KUB luminous glass ceiling fitting system, glass elements are held at the edges – without holes or cut-outs. Thus, any glass field, regardless of the arrangement in the luminous ceiling, can be removed without tools at any time. The luminous glass ceiling does not require any fitting or edge glass. The almost unlimited dimensions of glass also open up special architectural freedoms. Open joints with a width of 12 mm reveal the depth of the room and the lighting technology behind it through the glass surface. No visible screwing elements such as slots, grooves or slits can be seen on the glass surface.
Installation
No tools are required for the installation of the glass plates: Simple lifting and moving of the patented securing piece is sufficient!
This point fitting system is ideal for:
- Museums
Technical details
Similar solutions
- articulated & vertically adjustable
- no visible screw fittings
- assembly without tools
- placed on top
- Maximum dimensions: 1,800 x 4,080 mm
- approved for snow loads up to 1.5 kN/m²
- general building authority approval no. Z-70.3-103
- placed on top
- Glass thicknesses: 8–12 mm
- Glass types: TSG and LSG
