Description

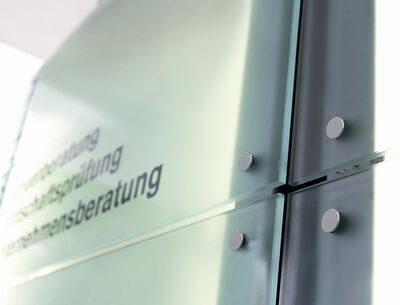

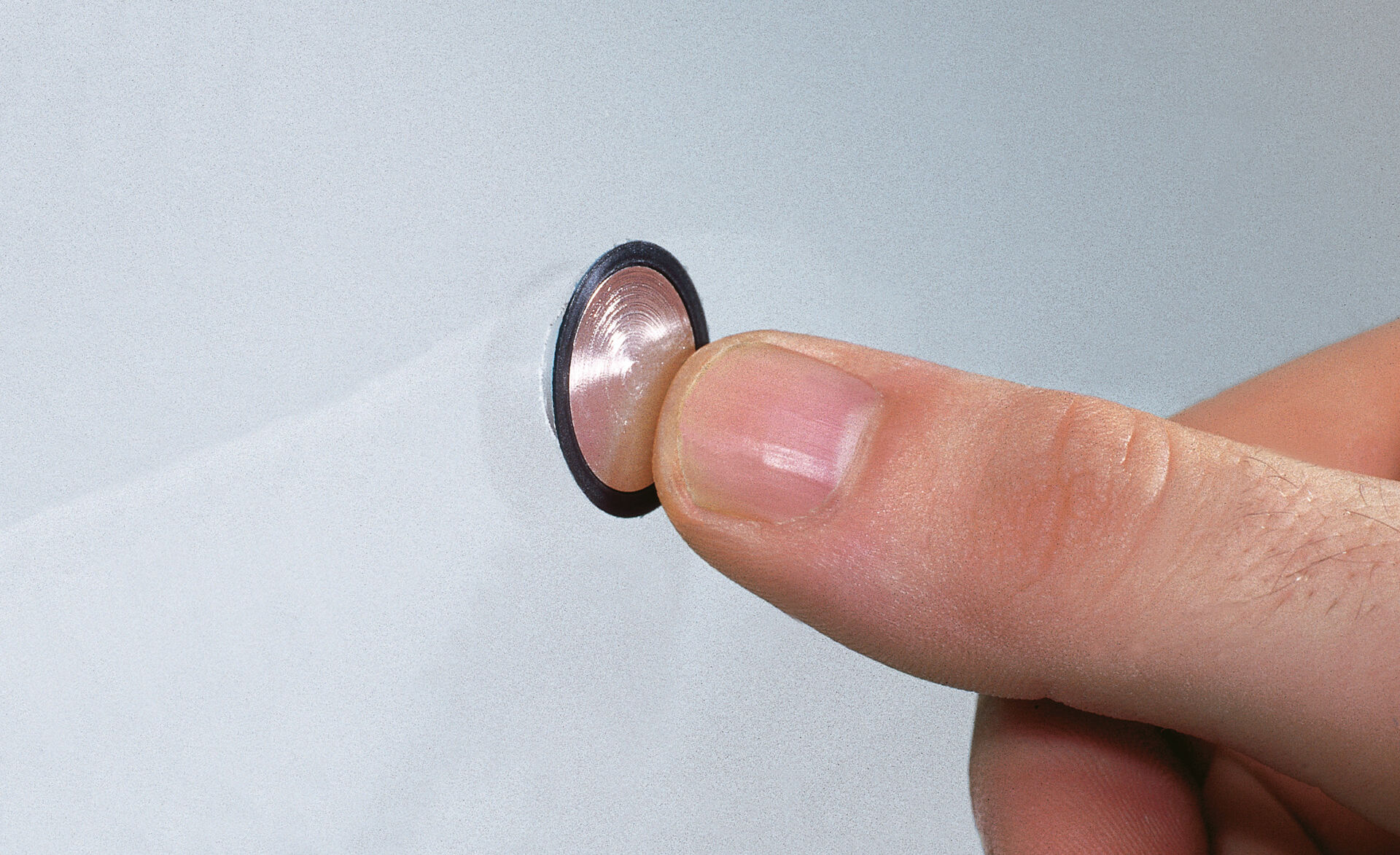

The flush-mounted, rigid point holder from Glas Marte is particularly simple and quick to assemble: Press GM PICO® into the countersunk hole, screw in the standard countersunk head screw, clip on the cover plate – done! The soft bearing washer already keeps the element to be fastened at a distance from the substructure. GM PICO® can also be used as a spacer for transport. It is made of high-quality plastic, is available in black or transparent versions and can be visually appealingly sealed with various cover plates (nickel-plated, gold-plated or black coated brass).

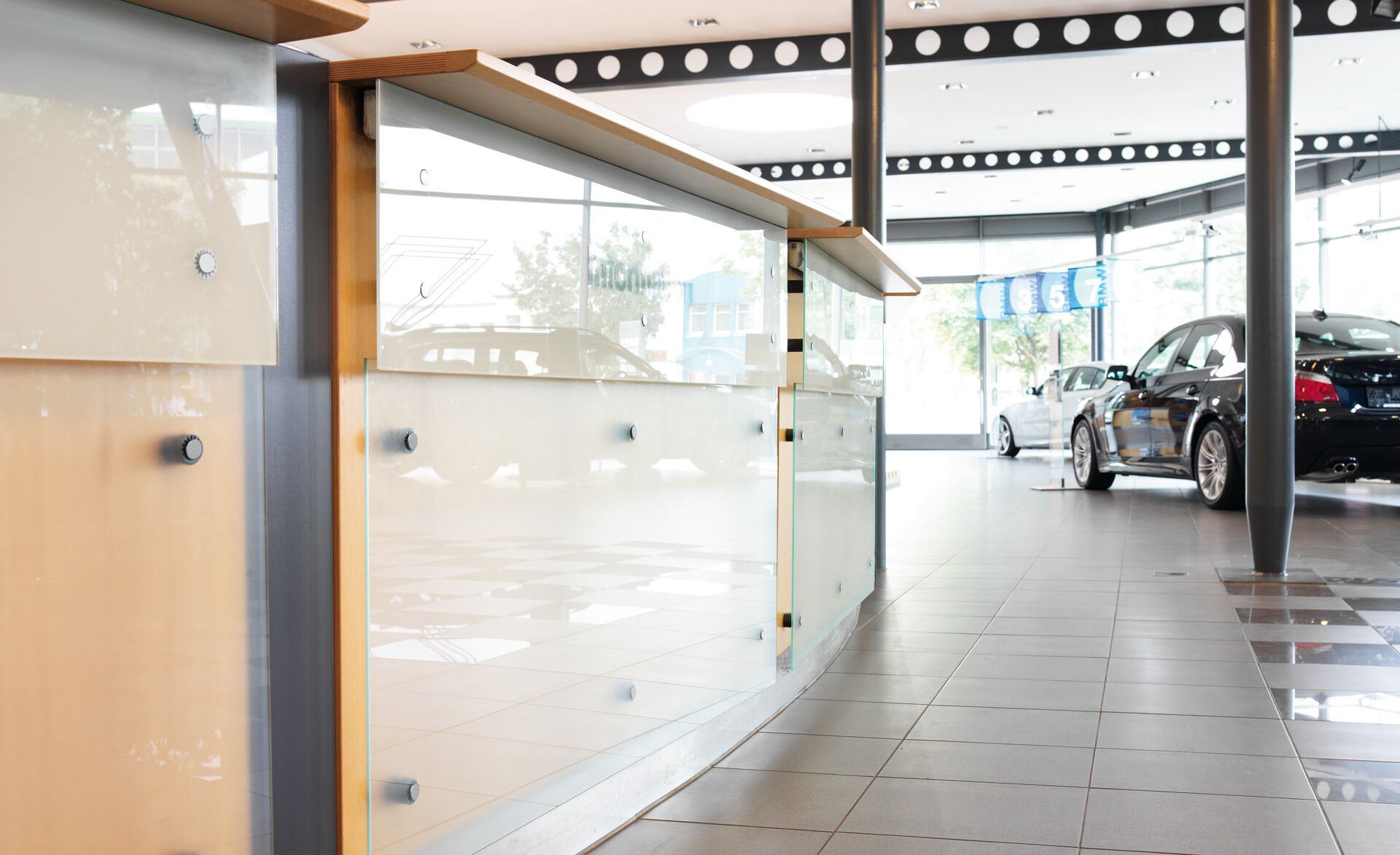

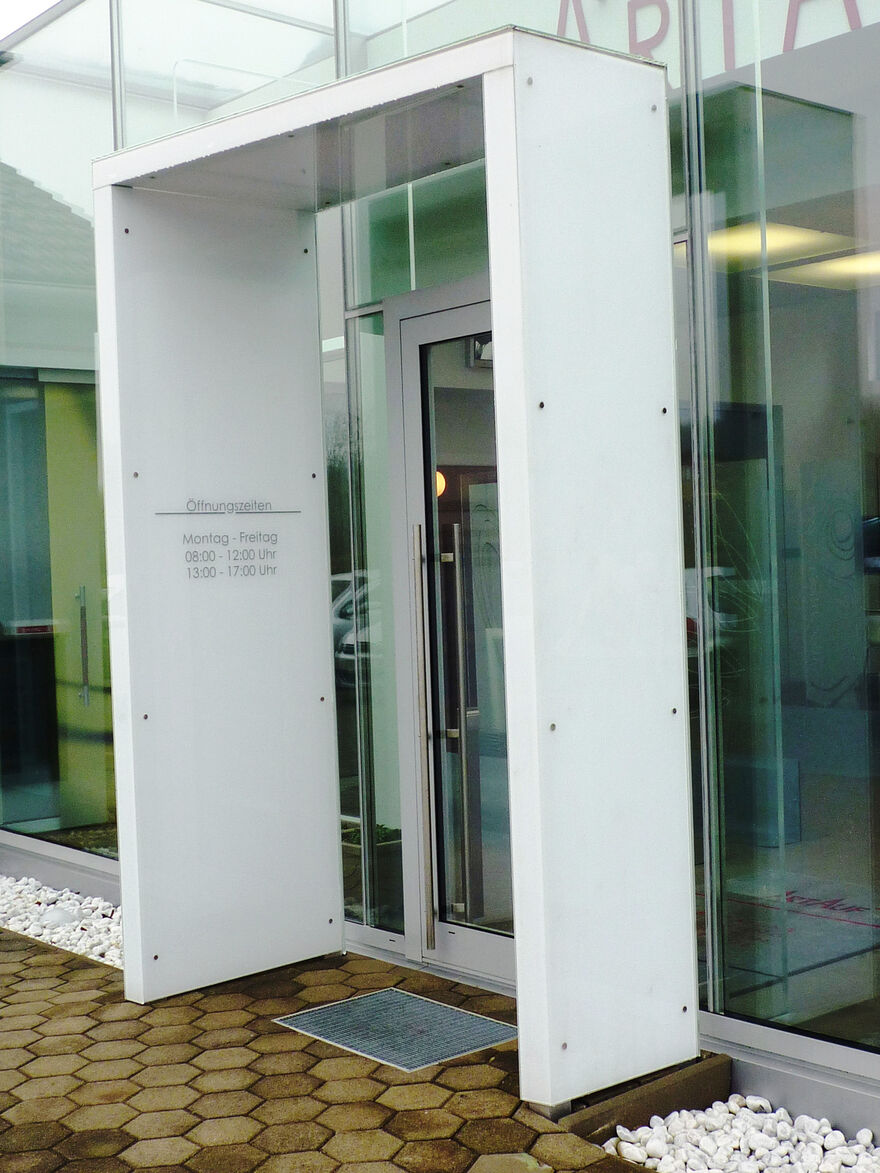

This point holder is ideal for:
- Mirror walls
- Glass ceilings
- Wall panel cladding
- Kitchen splashbacks
- Glazing in the sanitary area and furniture construction
Processing instructions:
Float glass & mirror:
- Distance x at least 20 mm
- Distance y at least 20 mm
Toughened safety glass TSG:
- Distance x at least 2 x glass thickness + 10 mm
- Distance y at least 5 x glass thickness + 10 mm
Technical details
Glass thicknesses
6 – 8 mm and 10 – 12 mm
Diameter
20 mm
Product variants
GM PICO® glass thickness 6 – 8 mm | GM PICO® glass thickness 10 - 12 mm | Execution: black, transparent | Cover plate: nickel-plated, gold-plated or black coated brass
Material
Point holders: Plastic PA 6 polyamide | Cover plate: Brass | Screws: provided by customer
