GM MARTITION® LIGHT

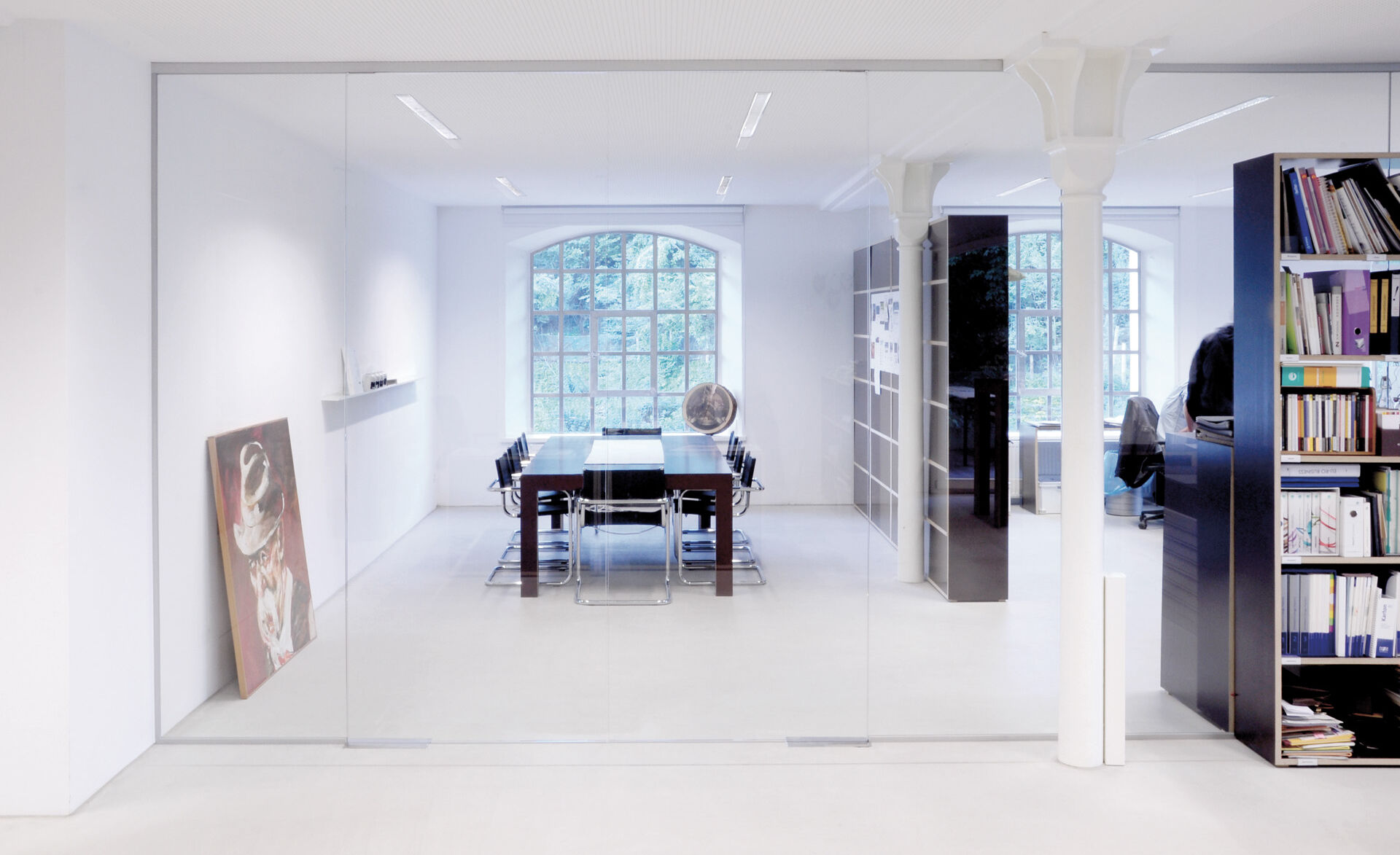

The GM MARTITION® LIGHT two-shell glass partition wall has a timeless, clear language of forms: The variable and versatile GM MARTITION® LIGHT all-glass module reduces office partition walls to the essentials. The doors also fit harmoniously into the flush-on-both-sides appearance, with the same installation depth as the fixed parts. The assembly time is reduced enormously thanks to the glass module construction method.

Design

• Full/partial enamel with screen print or roller print
• GM ICE-H® structured glass
• etched glass, e.g. GM SATINATO®
• GM LSG LAMIMART® COLOR

GM MARTITION® LIGHT – SWING DOORS (2-SHELL)

• oversized: e.g. 1,850 mm x 4,200 mm (size 7.8 m²)
• Maximum weight: 250 kg
• Frame:
• 10 mm facing width
• concealed behind the glass edges
• Thickness: 55 mm rounded (due to rotational movement and design thickness)
• Frame profiles:
• located behind the glass surface
• two brush seals can be integrated
• central bearing
• Floor-mounted door closer
