Description
With Glas Marte, in contrast to other systems, the glass is held in the lower running shoe by bonding. An exact glass position is thus guaranteed, the panes do not slip. In addition, the glass is supported centrally. The reliable perpendicular support of our glass doors is based on a simple principle: two rollers on two running rails. The guide rail protects against damage. The concealed brush seal ensures a low-maintenance construction, freezing up is impossible. Simple installation is a matter of course with Glas Marte.
To summarise:
- structural glass bonding and lifting protection
- low running noise due to plastic-coated stainless steel ball bearing rollers
- weather-resistant small parts
- low-maintenance design
- concealed brush seal (no freezing up)
- perfect protection of the glass edge by running shoe
- easy assembly
Details of the sliding system:
The frameless, bottom mounted GM LIGHTROLL® 6/8 sliding system is used for classic balcony glazing from parapet to ceiling (maximum system height approx. 2,000 mm). This makes it the ideal glass windscreen for balconies as well as loggias and patios. The multi-track sliding system (2, 3 or 4 tracks) is extremely space-saving and allows the glazing to be opened up to 75%. The slender sliding doors can be moved to the right and left. The glazing can be locked by means of a locking bolt or pressure cylinder lock.
These sliding doors are ideal for:

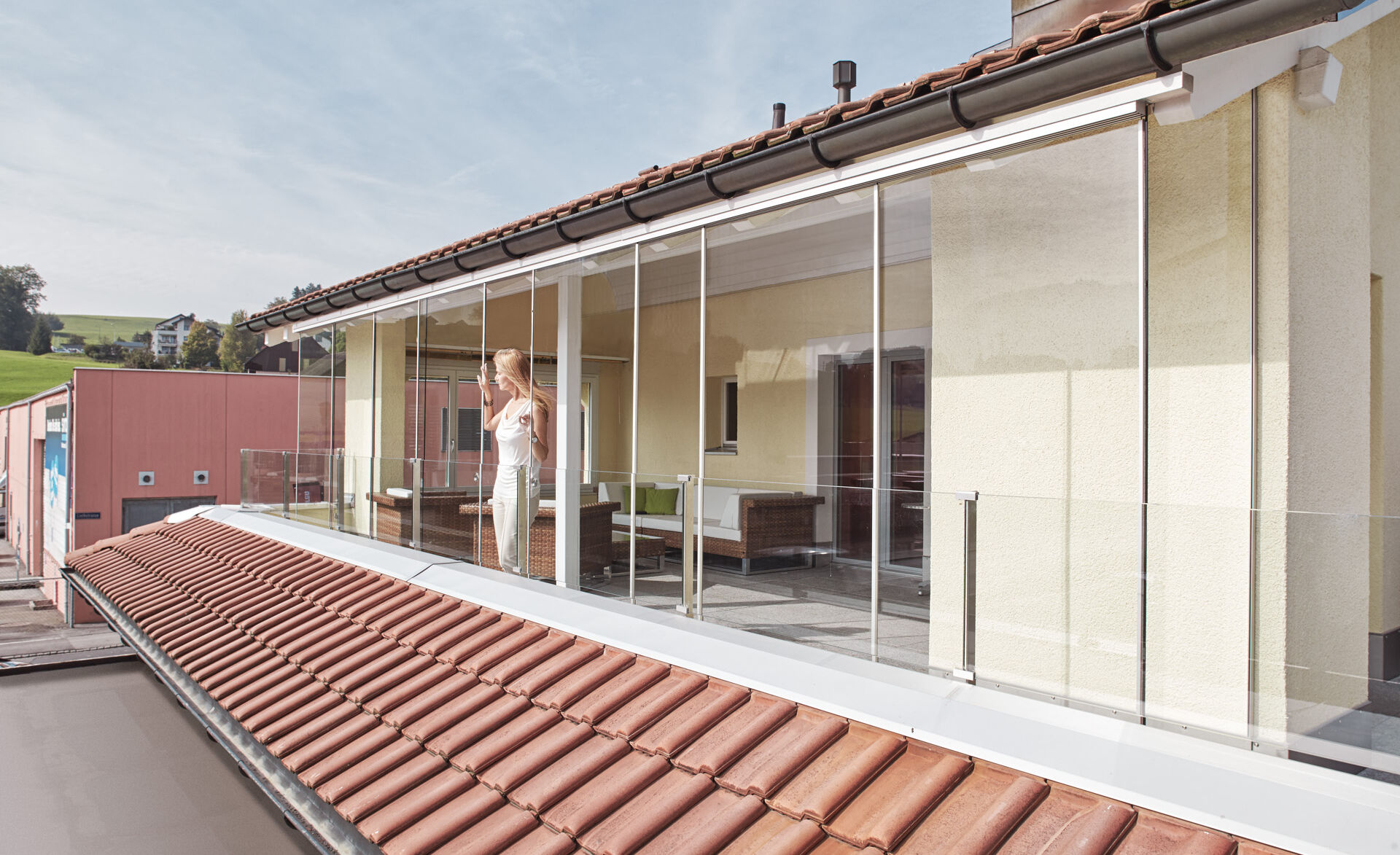

- Balcony glazing
- Patio glazing
- Loggia glazing
Technical details

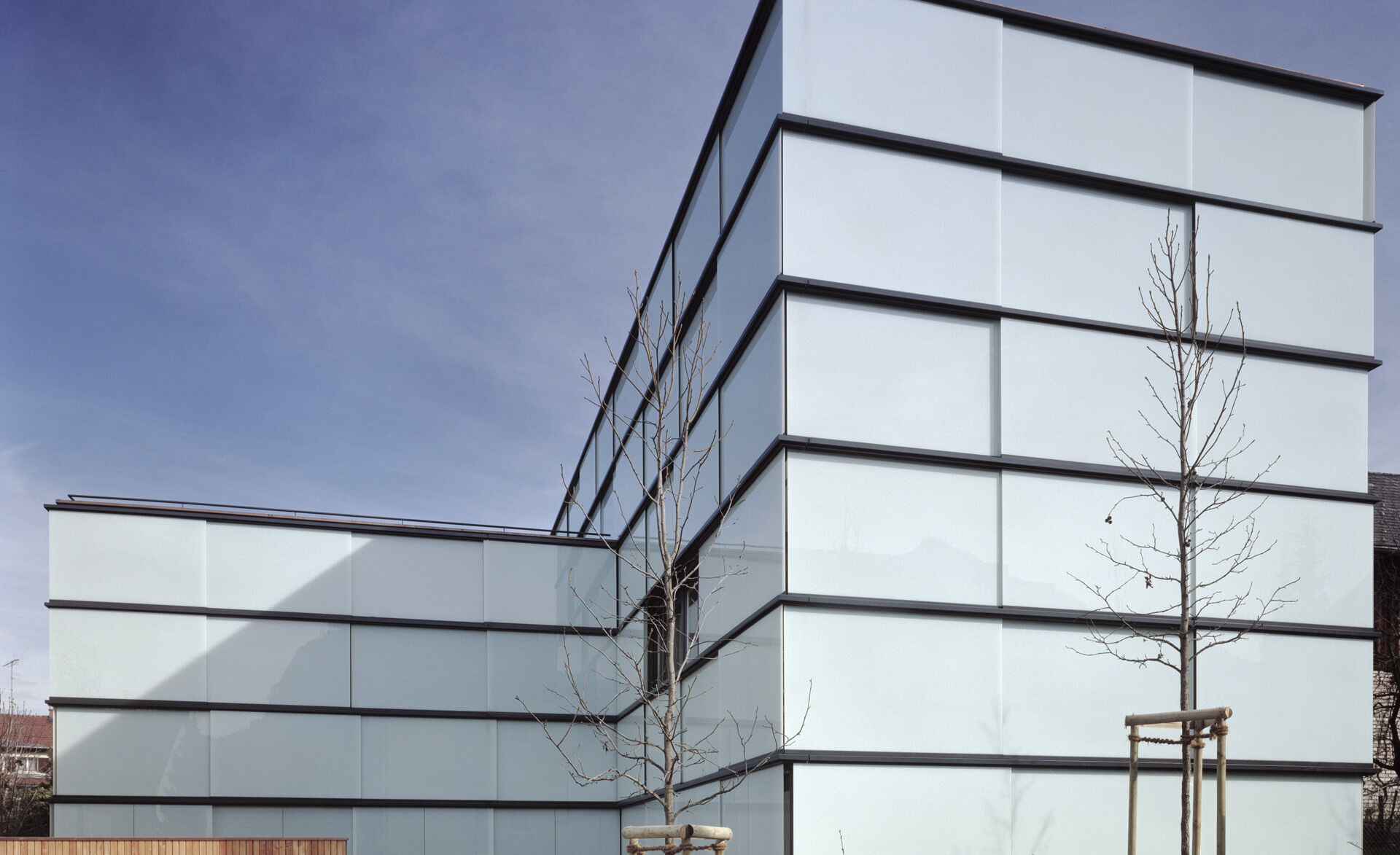

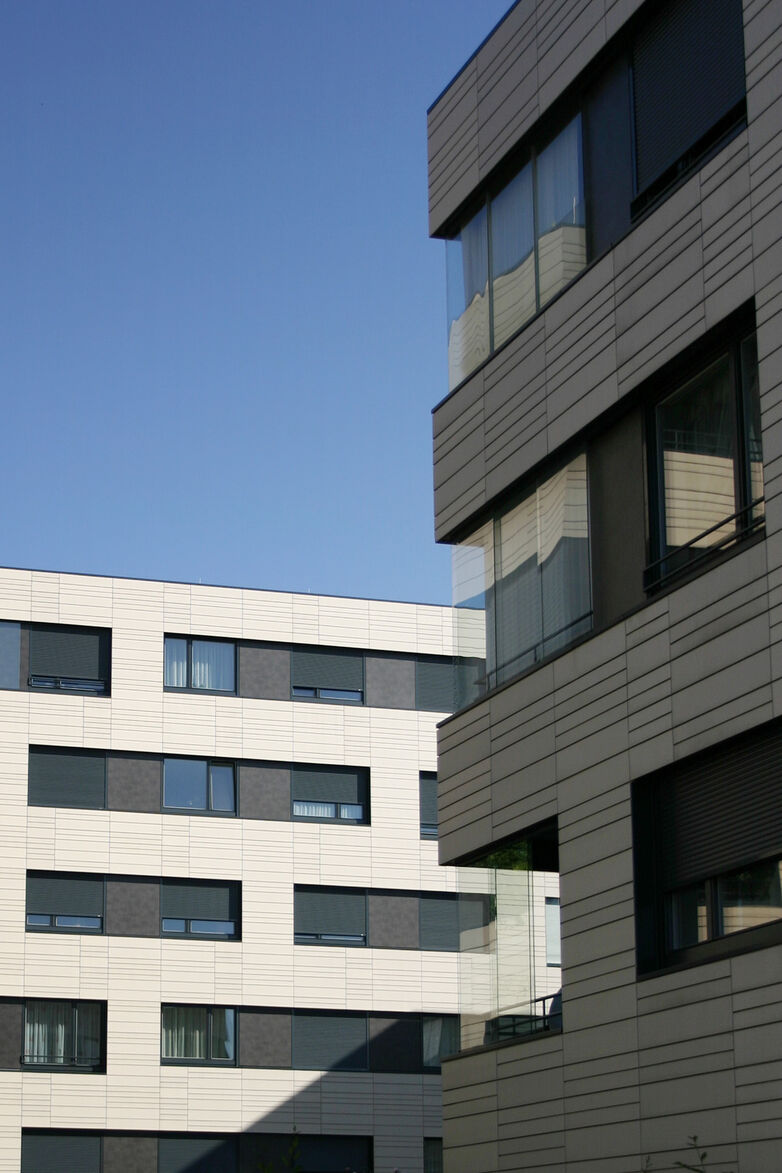

GM LIGHTROLL® 6/8 in use
Similar solutions
- 2 and 3-track
- glass 15 to 24 mm
- max. sliding glass weight: 200 kg
- 3 or 4-track
- glass 10 to 13.5 mm
- max. sliding glass weight: 100 kg
- 1-track
- glass 10 and 12 mm
- max. sliding glass weight: 100 kg
- 2, 3 and 4-track
- glass 6 and 8 mm
- max. sliding glass weight: 80 kg
